Which Type of Construction Is Most Fire-Resistant? | Commercial Construction Guide

When a spark turns into a flame, seconds determine whether you lose a room or a whole business. You want your structure to survive heat, smoke, and the collapse risk that follows. The short answer is clear: Type I construction stands at the top of the safety hierarchy. These buildings, usually made of concrete and steel, resist combustion far better than wood frames or even heavy timber. But knowing the difference between 'non-combustible' and 'fire-resistive' changes how you plan your project.

Many people think all commercial buildings handle fire the same way. They do not. A warehouse built in 2010 might use different framing rules than one erected today. If you manage assets or oversee development, understanding these distinctions protects your investment from physical loss and financial ruin.

The International Building Code Ranking

To understand what makes a building safe, we look at the International Building Codeis the standard regulatory framework used across the United States to define building safety requirements.IBC. It divides construction methods into five distinct types. Each type describes how much time the building can withstand before structural failure occurs. Time here is measured in hours of fire exposure.

Type I Construction involves materials that have zero fuel value. Think skyscrapers or hospitals. The structure relies heavily on reinforced concrete and protected steel. Neither burns. When fire hits, the building holds its shape long enough for evacuation and firefighter intervention. Some designs pass tests showing stability for four hours straight under intense heat. This makes Type I the gold standard for fire resilience.

• Type I (Fire-Resistive): Unprotected steel or concrete; highly resistant to fire spread.
• Type II (Non-Combustible): Similar to Type I but without strict insulation; metal structures often fall here.
• Type III (Ordinary): Exterior walls are brick or block, but the interior framing is wood.
• Type IV (Heavy Timber): Large wooden members that char slowly rather than burning rapidly.
• Type V (Wood-Frame): Standard residential style; uses light wood framing and burns quickly.

Type III and Type V structures contain significant amounts of combustible material. While the outside walls might stop a small fire, the interior floor joists can ignite rapidly. In contrast, Type I prevents this internal ignition source entirely.

Material Performance Under Fire

It is not just about the code classification; it is about the physics of the materials used. When engineers specify Reinforced ConcreteA composite material where concrete resists compression and steel bars resist tension., they leverage chemistry against fire. Concrete does not burn, melt, or warp under normal fire conditions. Its thermal conductivity is low, meaning heat travels slowly through it.

If you have a steel column exposed to direct flame, it weakens fast. Steel loses strength at temperatures above 1000 degrees Fahrenheit. To fix this, engineers apply spray-on fireproofing or encase the beams in special drywall assemblies. Without this protection, a 'non-combustible' Type II building can suffer a sudden collapse because the steel softens too quickly.

Reinforced ConcreteOffers superior thermal mass, allowing it to absorb significant heat energy before temperature rises critically. acts differently. It takes a massive amount of energy to heat concrete to critical failure points. This creates a buffer zone for occupants trying to leave. However, poor design still poses risks. Thin slabs or exposed rebar reduce the effective fire rating.

The Hidden Variable: Combustible Loads

You can build the strongest shell, but the contents inside change the outcome. Fire safety experts call this 'fuel load.' Even in a Type I building, storing thousands of gallons of paper or plastic boxes creates a firestorm inside. The building won't collapse, but the interior could become uninhabitable for years due to smoke damage.

This leads to another critical component: Passive Fire ProtectionSystems designed to limit the spread of fire within a structure after an event starts.. This includes fire-rated doors, firestopping gaps around pipes, and compartmentalization. A wall might be rated for two hours, but a single unsealed hole for a cable allows smoke to bypass the barrier instantly. Most failures happen not because the concrete melted, but because smoke traveled through service penetrations.

Real-World Testing Standards

Claims of fire resistance aren't guesses. They come from rigorous testing like the ASTM E119 standard. This test places a wall, floor, or ceiling in a furnace that follows a specific time-temperature curve. The goal is to see how long the assembly stops heat transfer and maintains structural integrity. Ratings appear in 30-minute increments (e.g., 1-hour, 2-hour, 3-hour).

A common misunderstanding is equating the rating with survival time for people. A 'one-hour rating' means the wall held the fire back for 60 minutes in a lab. It does not guarantee that occupants stay safe for exactly 60 minutes. Factors like ventilation, sprinkler activation speed, and evacuation drills play larger roles in human survival than the raw material alone.

Insurance and Financial Reality

When you choose Type I construction, you influence your insurance premiums significantly. Insurance companies view non-combustible structures as lower risk. They charge less per square foot for coverage because the probability of total structural loss is lower. This saving often offsets the higher initial construction costs over time.

Conversely, Type V buildings face higher premiums in wildfire-prone areas. Many insurers now refuse to cover residential wood-frame homes in high-risk zones. If you plan a commercial development in California or similar regions, opting for heavy steel framing isn't just about safety; it is often a requirement to get a loan or policy approved.

Maintenance Keeps the Shield Strong

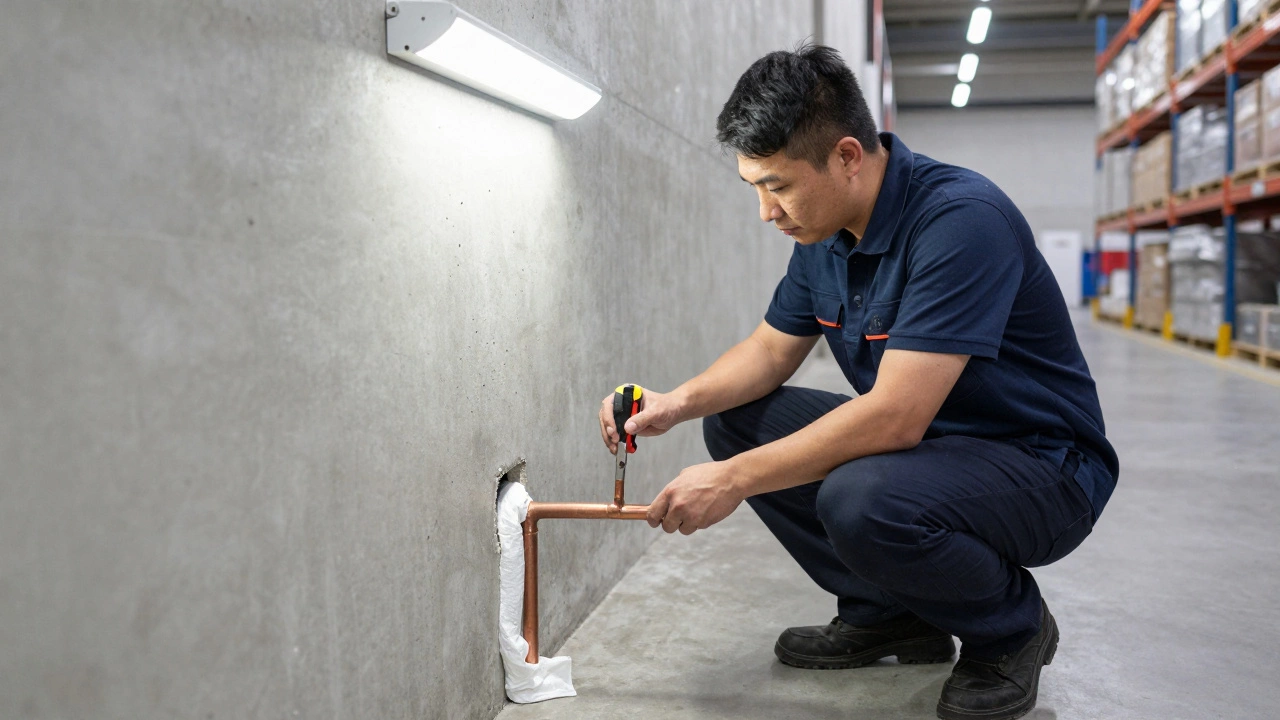

Fire resistance degrades if ignored. Corrosion eats away at rebar inside concrete columns over decades. Water leaking onto insulation can rot fire-rated batts. Regular inspections verify that fire-stopping sealant hasn't cracked or shrunk. Facilities managers must log these checks annually.

Retrofitting old Type III buildings to meet modern Type II standards is possible but expensive. It requires wrapping steel columns in cementitious plaster or replacing wood floors with concrete decks. Planning ahead during the design phase avoids this costly upgrade later.

Frequently Asked Questions

Selecting the right construction type is a balance between budget and risk tolerance. For maximum longevity and safety, concrete and protected steel remain the champions. However, proper installation and maintenance matter just as much as the material choice itself. Always consult local building codes, as regional amendments often supersede general guidelines.
